What is Horizontal Direction Drilling?
Horizontal Directional Drilling involves the use of specialized drilling and support equipment to install pipes and services without having to excavate through roads, rivers, dams and other structures. HDD is suitable for installing a wide variety of pipe types, sizes and arrangements. From small telecommunications ducts to large diameter enveloper's, water, gas, sewer and other services. HDD can also be utilized for installing bundles or multiple pipes housed within a single bore hole with arrangements from 2 pipes through to 10+ pipes able to be installed in a single hole.
1. Pilot Bore
The HDD Process starts by establishing existing utilities and underground obstacles, required depths for new services allowing a profile and alignment to be created. From there a suitably sized drilling rig is placed on site, and a pilot hole is drilled from the launch pit to the receiving pit. The drill bit is guided using one of several available tracking systems, with steering available in any direction to navigate and avoid subsurface obstacles.
2. Reaming
Once the pilot hole is complete, a reamer is attached to the drill string. This allows the bore hole to be upsized larger in increments to achieve the required hole size for the product pipe. Reamers are available in a host of configurations to suit all ground conditions.
3. Cleaning/Gauging
Once all reaming passes are complete, a cleaning barrel is attached and used to remove any remaining drill cuttings and gauge the borehole is the correct size and will house the product being installed adequately.
4. Pullback
The final step in the installation process is to attach the product being installed to the drill string via a swivel to stop it rotating with the string, and use the drilling rig to pull the product into the hole, completing the installation.
Our Services
HDD is the core of SEQ Drilling's Services.
SEQ Drilling are able to offer design and engineering services to offer a turn-key solution to you HDD crossing including profile and alignment drawings, settlement analysis and a host of other construction documents.

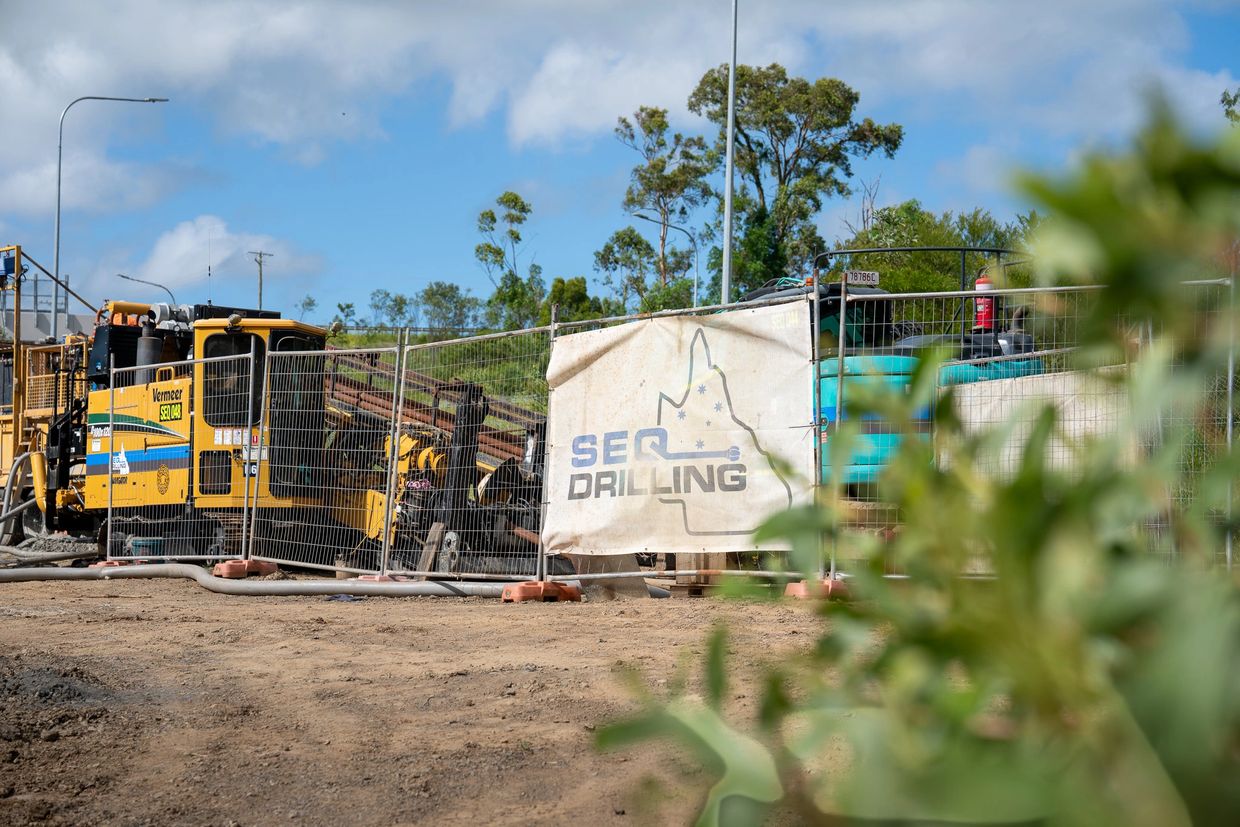

We have several drill rigs ranging from small 20,000lb drill rigs perfect for smaller works in tight urban areas to 100,000lbs suitable for longer larger diameter pipes. We have a host of support equipment and tooling to tackle all ground conditions and all jobs including several excavators, hydro excavation trucks, fluid recyclers and tooling for all ground conditions and pipe sizes.
If you need a new pipe installed through an area where open trenching isn't suitable HDD may be the solution you are looking for. Contact us today for a no obligation site assessment and quote.
